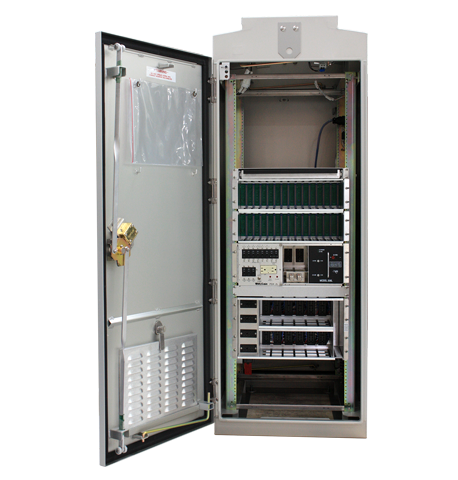

332L Cabinet

Standard-size 332 traffic control cabinet for 170 or 2070 controllers with high-efficiency power supply and low maintenance installations.

332L Cabinets are enhanced versions of the 332-style cabinet designed in compliance with Caltrans TEES. The cabinet reduces energy consumption through a high-efficiency power supply and is also made without the use of the harmful toxin mercury. The quality materials used and its rugged construction make it an excellent traffic control cabinet for eco-friendly and low-maintenance installations.

Download product brochure Request information

Benefits

Reduce energy consumption
Versatile, weatherproof, and secure cabinet
Interchange assemblies between manufacturers
Reduce the effects of vandalism with optional anti-graffiti coating
Mercury-free, ecofriendly design

Standard Features

8-phase, 4-pedestrian operation
36 detector channel capability
2-channel or 4-channel industry standard detection modules
Railroad (2) and emergency vehicle (4) preemption inputs
Solid state relay (SSR)
Relay safety feature
Programmable “Yellow/Red” or “All Red” flashes
DC isolation inputs for pedestrian push buttons and special functions
210 Signal Monitor slot
Transient voltage and surge suppression filter
Drawer/shelf combination

Technical Details

Dimensions	67” H x 24” W x 30” D
Material	5052-H32 aluminum, 0.125” thick
Finish	Natural, anodized, or powder coated with optional anti-graffiti coating
Door(s)	Front (1), back (1), all full size
Handles	3/4” round, stainless steel, with padlock feature
Mounting	Base mounted
Weight	258 lbs without plug-ins or controller

Assemblies

14-position input files (2)
12-position output file
Power-saving, high-efficiency power supply
Flash transfer relay sockets (4)
Dual-circuit flasher sockets (2)
Input panel
Service panel
Police panel with signal “On/Off” and “Auto/Flash” switches

Options & Add-ons

Anchor bolts for mounting
Fluorescent light(s)
UL Listing (cabinet housing)

Manufacturer

Made by SWARCO McCain.

SWARCO McCain, Inc. reserves the right to change product specifications without notice. For the most up-to-date information, please contact SWARCO McCain.
