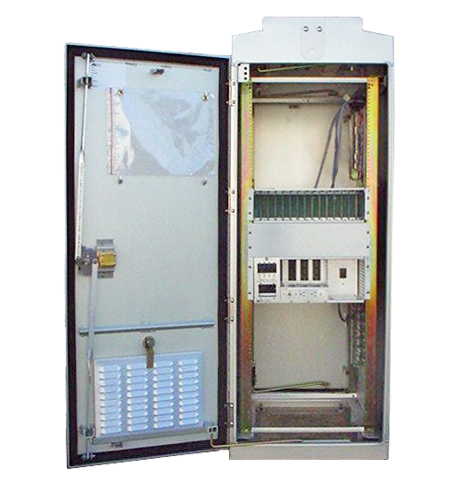

334 Cabinet

Standard-size ramp meter cabinet for 170 or 2070 controllers. Ideal for ramp metering and various other applications such as highway surveillance, CCTV, and CMS sign control.

334 Cabinets are versatile cabinets ideal for ramp metering and various other applications such as highway surveillance, CCTV, and CMS sign control. Meeting all Caltrans and FHWA requirements, 334 Cabinets offer standard assemblies and ample room for up to two controllers and other equipment. The quality materials used and its rugged construction result in a dependable and low-maintenance cabinet.

Download product brochure Request information

Benefits

Use for traffic control or other applications
Store up to two controllers
Versatile, weatherproof, and secure cabinet
Interchange assemblies between manufacturers
Reduce the effects of vandalism with optional anti-graffiti coating
Comply with Caltrans and FHWA requirements

Standard Features

3-phase operation
2-channel or 4-channel industry standard detection modules
Detector input panel with terminal blocks or Panduit ducts

Technical Details

Dimensions	67” H x 24” W x 30” D
Material	5052-H32 aluminum, 0.125” thick
Finish	Natural, anodized, or powder coated with optional anti-graffiti coating
Door(s)	Front (1), back (1), all full size
Handles	3/4” round, stainless steel, with padlock feature
Mounting	Base mounted
Weight	200 lbs without plug-ins or controller

Assemblies

Up to 28 isolated inputs
9 AC switched outputs
Combined PDA-3 power distribution assembly, Model 206 24 VDC plug-in power supply, and 3 loadswitch positions
Service panel
Controller shelf

Options & Add-ons

Anchor bolts for mounting
Fluorescent cabinet lights
Dual fans
Communication panels
External modems
Drawer/shelf assembly
Cabinet diagnostic kit
208 watchdog monitor
UL Listing (cabinet housing)

Manufacturer

Made by SWARCO McCain.

SWARCO McCain, Inc. reserves the right to change product specifications without notice. For the most up-to-date information, please contact SWARCO McCain.
