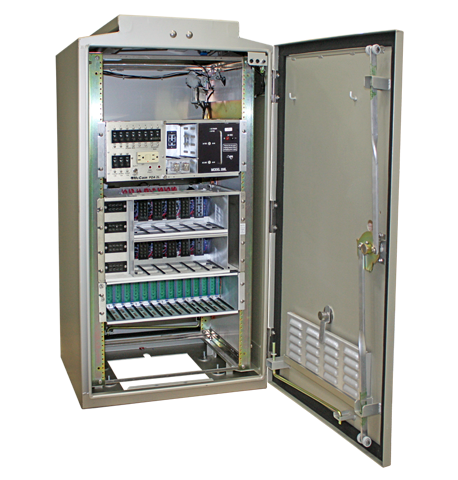

336L Cabinet

Compact traffic control cabinet for 170 or 2070 controllers with high-efficiency power supply. Suitable for pedestal or side-pole mounting, ensuring versatile installation.

336L Cabinets are compact cabinets that can be base, pedestal or pole mounted. Meeting all Caltrans and FHWA requirements, 336L Cabinets offer easy access to all interior assemblies and field terminations through two sets of double doors. The cabinet reduces energy consumption through a high-efficiency power supply and is also made without the use of the harmful toxin mercury.

Download product brochure Request information

Benefits

Increase design flexibility with multiple mounting options
Versatile, weatherproof, and secure cabinet
Interchange assemblies between manufacturers
Reduce the effects of vandalism with optional anti-graffiti coating
Mercury-free, ecofriendly design
Comply with Caltrans and FHWA requirements

Standard Features

8-phase, 4-pedestrian operation
16 detector channels
2-channel or 4-channel industry standard detection modules
Railroad preemption inputs, AC isolation (2)
Emergency vehicle preemption inputs (4)
Solid state relay (SSR)
Relay safety feature
Programmable “Yellow/Red”, “All Red” or “No Flash”
DC isolation inputs for pedestrian push buttons and special functions
210 Signal Monitor slot
Transient voltage and surge suppression filter

Technical Details

Dimensions	46” H x 24” W x 20” D
Material	5052-H32 aluminum, 0.125” thick
Finish	Natural, anodized, or powder coated with optional anti-graffiti coating
Door(s)	Front (1), back (1), all full size
Handles	3/4” round, stainless steel, with padlock feature
Mounting	Base, pedestal, or side of pole mounting
Weight	265 lbs without plug-ins or controller

Assemblies

14-position input file
12-position output file
Model PDA-2L Power Distribution Assembly
Model 206L power-saving, high-efficiency power supply
Flash transfer relay sockets (4)
Dual-circuit flasher positions (2)
Input panel
Service panel
Police panel with signal “On/Off” and “Auto/Flash” switches

Options & Add-ons

Mounting equipment
Auxiliary output file

Manufacturer

Made by SWARCO McCain.

SWARCO McCain, Inc. reserves the right to change product specifications without notice. For the most up-to-date information, please contact SWARCO McCain.
