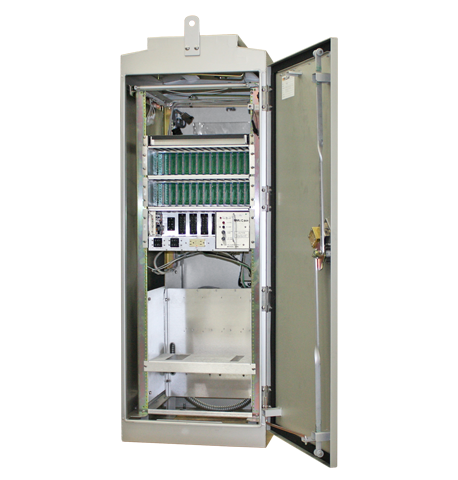

341 Ramp Meter Cabinet

Standard-size ramp meter cabinet for 170, 179, or 2070 controllers. Its rack and modular design allow for the easy interchange of standard assemblies and components.

341 Ramp Meter Cabinets are industry-standard 170/2070 style cabinets designed specifically for ramp meter applications. Meeting all Caltrans and FHWA requirements, its rack mount and modular design allow for the easy interchange of components. The quality materials used and its rugged construction make it an excellent ramp meter cabinet for dependable and low-maintenance installations.

Download product brochure Request information

Benefits

Store and secure equipment for ramp meter applications
Versatile, weatherproof, and secure cabinet
Interchange assemblies between manufacturers
Reduce the effects of vandalism with optional anti-graffiti coating
Comply with Caltrans, FHWA and ADOT requirements

Standard Features

2-channel or 4-channel industry standard detection modules
Detector input panel with terminal blocks or Panduit ducts
208 watchdog timer
Fluorescent cabinet lights (2)
30 amp main circuit breaker
15 amp auxiliary and equipment circuit breakers (4)
Surge arrestor and noise filter
Drawer
Shelf

Technical Details

Dimensions	67” H x 24” W x 30” D
Material	5052-H32 aluminum, 0.125” thick
Finish	Natural, anodized, or powder coated with optional anti-graffiti coating
Door(s)	Front (1), back (1), all full size
Handles	3/4” round, stainless steel, with padlock feature
Mounting	Base mounted
Weight	225 lbs without plug-ins or controller

Assemblies

14-position type “I” input file
14-position type “J” input file
12 AC switched outputs
Combined PDA-4 power distribution assembly, Model 206 24 VDC plug-in power supply, 1 flasher and 4 loadswitch positions
Service panel
Controller shelf

Options & Add-ons

Anchor bolts for mounting
Communication panels
External modem
Cabinet diagnostic kit
UL Listing (cabinet housing)

Manufacturer

Made by SWARCO McCain.

SWARCO McCain, Inc. reserves the right to change product specifications without notice. For the most up-to-date information, please contact SWARCO McCain.
