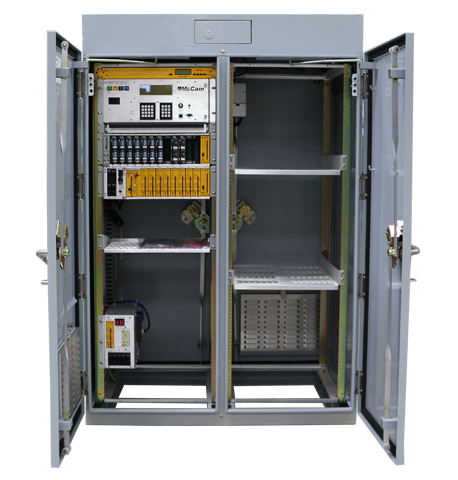

350i ATC Cabinet

Oversized, four-door ATC cabinet for ATC controllers. Manages up to 120 inputs and 32-channel outputs.

350i ATC cabinets combine the best of rack mount and serial-based designs to meet the needs of today’s LED intersections. Using smarter, high-density components, the cabinets offer unparalleled control capabilities for intersections that would otherwise require unorthodox wiring or a second cabinet. Users rave about the drastically reduced assembly size that leaves ample room for auxiliary equipment. Our proven ATC Cabinets meet the needs of today’s smart cities and are ready for tomorrow’s challenges, including the future of connected and autonomous vehicles.

Download product brochure Request information

Benefits

Manage up to 120 detector inputs and 32-channel outputs
Store additional ITS equipment in spacious interior
Safeguard against accidental shock from inadvertent contact with high voltages
Comply with leading standards on electrical safety, including NEC and NFPA 70E
Detect a dark approach for increased driver safety
Monitor FTR and flasher continuously to ensure operability
Allow for hot swappable output assembly for improved intersection safety
Upgrade existing installations - matches 332 Caltrans and ITS 342 cabinet footprints
Connected vehicle ready

Standard Features

Field output termination assembly provides removable contact blocks for easy connections to field signal wires, sockets for flash transfer relays (FTRs), and flash program blocks (FPBs) for output channels
All channels are flashable and programmable
FPBs control and select the color (red, yellow, or dark) during flash
Hermetically sealed high-density FTR features an LED indicator to visually confirm relay is operational and contacts have transferred
Interior LED cabinet lights, front (2) and back (2)
Model 2202 dual flasher/switch pack combination
Exterior is continuously welded

Technical Details

Dimensions	45” W x 67"H x 26” D
Material	5052-H32 aluminum, 0.125” thick
Finish	Natural, anodized, or powder-coated
Door(s)	Front (2), back (2), all full size
Handles	3/4” round, stainless steel, with padlock hasp
Mounting	Base mounted
Weight	365 lbs without plug-ins or controller

Assemblies

24 or 48-channel input assemblies
2 or 4-channel industry standard detection modules
48-channel detector, PPB, EVP, etc.
16 or 32-channel output assembly
32-channel CMU
CMU auxiliary display unit
Model 2216-24 cabinet power supply
DC power / communication assembly
Clean AC power assembly
Police panel with On/Off, MCE, Auto/Flash, and Interval Advance push button cable
Slide-out drawer for storing programming blocks, plans, etc.
Fan panel assembly

Options & Add-ons

3/4” x 16” anchor bolts for mounting (4)
Fiber optic termination panel
Garmin GPS Communication Panel
ATC Cabinet Input Test Panel
Cabinet Test Display
Input File Test Card
ATC CyberCabinet
ATC Cabinet Alarm Panel

Manufacturer

Made by SWARCO McCain.

SWARCO McCain, Inc. reserves the right to change product specifications without notice. For the most up-to-date information, please contact SWARCO McCain.
