ATC Cabinet Auxiliary Input/Output Assembly

The ATC Cabinet Auxiliary Input/Output (I/O) Assembly allows for additional inputs and outputs to be added to an ATC cabinet without another Input Assembly. This valuable tool provides connections to “in-cabinet” monitoring points for components like battery backup systems or door switches. The space-saving design uses a 1-unit (1U) housing and provides indicator LEDs for each input. The McCain ATC Cabinet Auxiliary I/O Assembly also provides eight relay dry-contact outputs that can be used for any purpose.

Download product brochure Request information

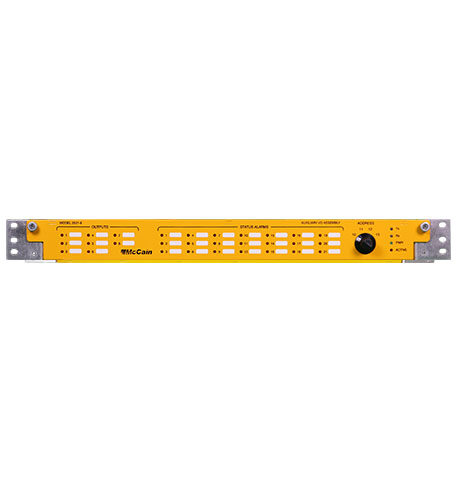

SWARCO McCain ATC Cabinet Auxiliary Input/Output (I/O) Assembly

Benefits

Provides 21 general purpose inputs and 8 general purpose outputs
Utilizes minimal space
Supports easy viewing of switch status with LED indicators on front panel
Promotes functionality with fold-down front panel for easy access to connectors

Standard Features

21 inputs and 8 outputs with red LED indicators
TX and RX indicators with yellow LEDs show communication activity
+24 volt power indicator with green LED
Activity indicator with red LED

General Specifications

Dimensions	19” W x 1.75” H x 3” D
Power	+24 volt power supply
Environment	Operating Temperature: -37° C to +74° C Humidity: 0 to 95% (non-condensing)
Mounting	19" EIA rack mount
Weight	1.2 lbs

Manufacturer

Made by SWARCO McCain.

SWARCO McCain, Inc. reserves the right to change product specifications without notice. For the most up-to-date information, please contact SWARCO McCain.

SWARCO McCain ATC Auxiliary IO Assembly.pdf
