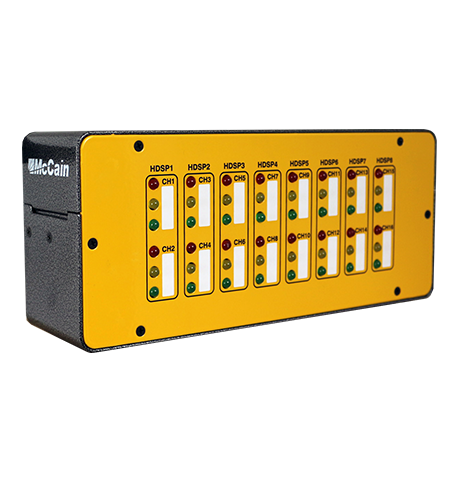

Cabinet Test Display

View traffic signal status with ease in the field or test environments. Its compact size makes it portable and storable in fully equipped traffic cabinets.

Cabinet Test Displays are a simple and effective tool for displaying and testing the state of traffic signals in the field or test environments. A fraction of the size of its predecessor, the unit’s compact size makes it easily portable and storable in fully equipped traffic cabinets. The display indicators are in color and numbered for simplicity.

Download product brochure Request information

Benefits

Elegantly displays traffic signal state
Ideal for in the shop or field testing
Compact design allows for easy storage in a fully equipped cabinet

Standard Features

Compatible with Caltrans 33X, ITS, ATC, and NEMA cabinet types
80” harness length
16 phase display (CH1-CH16)

Technical Details

Dimensions	9.4” W x 4” H x 2.5” D
Material	5052-H32 aluminum
Finish	Yellow and silver vein powder coated
Power	120 VAC or 48 VDC
Output Load	120 VAC = 100 mA per channel 48 VDC = 10 mA per channel
Environment	Operating Temperature: -37° C to +74° C Humidity: 0 to 95% (non-condensing)
Mounting	Shelf mount or hang on cabinet door
Weight	3.3 lbs

SWARCO McCain Cabinet Test Display.pdf
