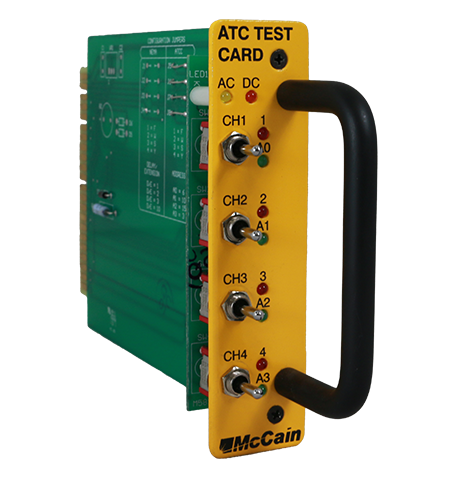

Input File Test Card

Activate normal detector slot outputs for testing purposes. The test card comes in two versions to accommodate both ATC and NEMA cabinets.

SWARCO McCain’s Input File Test Card was designed to activate the normal detector slot outputs for testing purposes. The test card comes in two versions to accommodate both ATC and NEMA cabinets. LED indicators allow for easy viewing and monitoring.

Download product brochure Request information

Benefits

Easily activate normal detector slots for testing purposes
Available for ATC and NEMA cabinets

Standard Features

LED Status Indicators

LED indicators illuminate based on toggle switch position.

1 yellow LED to indicate power
1 orange LED to indicate 24VDC power
1 red LED per channel (4 channels total)
1 green LED indicator per slot address or NEMA delay extension function

Technical Details

Dimensions	1.12” W x 4.5” H x 7.0” D (excluding handle)
Power	+24 volt power supply 8VDC input activation voltage
Environment	Operating Temperature: -37° C to +74° C Humidity: 0 to 95% (non-condensing)
Mounting	Plug-in card
Weight	0.3 lb

Manufacturer

Made by SWARCO McCain.

SWARCO McCain, Inc. reserves the right to change product specifications without notice. For the most up-to-date information, please contact SWARCO McCain.

SWARCO McCain Input File Test Card.pdf
