342/4LX Hub, CCTV, ITS Cabinet

Oversized, four-door communications cabinet for 170 or 2070 controllers with added safety. Ideal for various communications and ITS requirements.

342/4LX Hub, CCTV, ITS Cabinets are an industry standard 170/2070 style cabinet ideal for accommodating a wide variety of communications and ITS requirements. Compliant with Caltrans TEES, the cabinet’s unique design protects personnel from accidental contact with potentially dangerous, high-voltage parts in compliance with safety standards set forth by the NEC and OSHA.

Download product brochure Request information

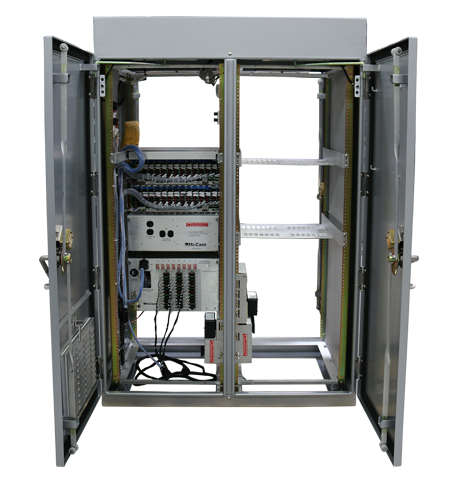

SWARCO McCain 342/4LX Hub, CCTV, ITS Cabinet

Benefits

Protect personnel from accidental contact with high voltages
Interchange assemblies and components easily
Access spacious interior though two sets of double doors
Comply with the latest Caltrans TEES standard

Standard Features

Cabinet lights (2)
Shelves (6)

Technical Details

Dimensions	67” H x 45” W x 26” D
Material	5052-H32 aluminum, 0.125” thick
Finish	Natural, anodized, or powder coated with optional anti-graffiti coating
Door(s)	Front (2), back (2), all full size
Handles	3/4” round, stainless steel, with padlock feature
Mounting	Base mounted
Weight	350 lbs without plug-ins or controller

Assemblies

Service Panel, #1

Main circuit breaker
Equipment panel
Raw power circuit breaker
Clean power circuit breaker
Equipment circuit breaker
Duplex receptacle raw power circuit
Duplex receptacle clean power circuit
AC- and EG buses
AC power block

Service Panel, ITS

Main circuit breaker
Raw power circuit breaker
Clean power circuit breaker
Equipment circuit breaker
Duplex GFCI receptacle
Duplex receptacles (2) raw power circuit
Duplex receptacles (2) clean power circuit
AC- and EG buses
AC power block

Options & Add-ons

Anchor bolts for mounting

SWARCO McCain 342-4LX Hub,CCTV,ITS Cabinet.pdf
