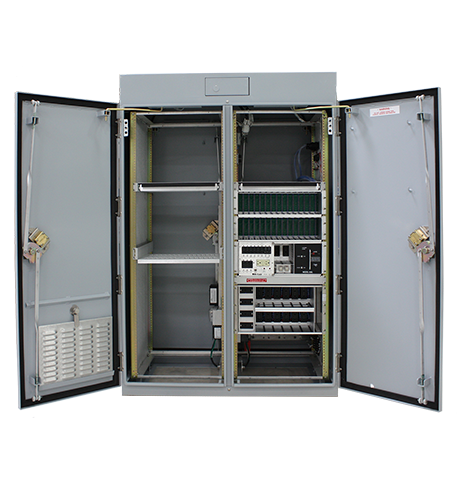

342LX Cabinet

Oversized, four-door traffic control cabinet for 170 or 2070 controllers with enhanced safety features. Protects personnel against high-voltage parts.

342LX Cabinets are a progressive traffic control cabinet that boasts enhanced safety features to protect personnel from inadvertent contact with potentially dangerous high-voltage parts. Its oversized design, rooted in the advanced functionality of ITS cabinets, easily accommodates components for intersection management, while providing ample space for alternate ITS applications equipment.

Download product brochure Request information

Benefits

Protect personnel from accidental contact with high voltages
Use for a multitude of traffic applications
Interchange assemblies and components easily
Access spacious interior though two sets of double doors
Comply with the latest Caltrans TEES standard

Standard Features

8-phase, 4-pedestrian operation
36 detector channel capability
2-channel or 4-channel industry standard detection modules
Railroad (2) and emergency vehicle (4) preemption inputs
Solid state relay (SSR)
Relay safety feature
Programmable “Yellow/Red” or “All Red”
DC isolation inputs for pedestrian push buttons and special functions
210/2010 signal monitor slot
Transient voltage and surge suppression filter
Drawer/shelf combination
C11 harness
Lights

Technical Details

Dimensions	67” H x 45” W x 26” D
Material	5052-H32 aluminum, 0.125” thick
Finish	Natural, anodized, or powder coated with optional anti-graffiti coating
Door(s)	Front (2), back (2), all full size
Handles	3/4” round, stainless steel, with padlock feature
Mounting	Base mounted
Weight	368 lbs without plug-ins or controller

Assemblies

Fan Panel Assembly

Lamp Assembly

Equipment Rack Assembly

Mounting cage
Service PDA
Drawer shelf assembly
Equipment shelf assembly

Rack Assembly

Mounting cage
Power distribution assembly #2LX
206L power supply
Input files I and J
Output file #1LX
Service panel #1 assembly
Input panel assembly
Drawer shelf

Options & Add-ons

Anchor bolts for mounting

Manufacturer

Made by SWARCO McCain.

SWARCO McCain, Inc. reserves the right to change product specifications without notice. For the most up-to-date information, please contact SWARCO McCain.
