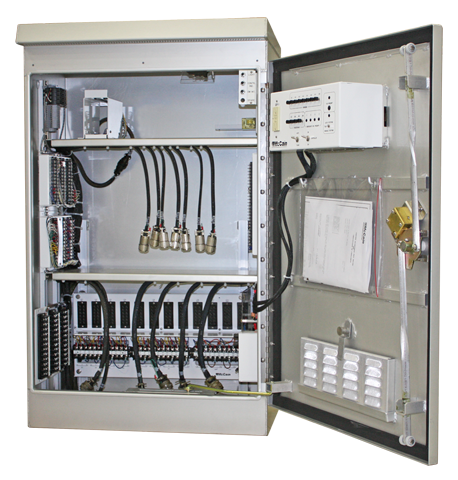

M NEMA TS 1 Cabinet

Standard-size traffic control cabinet for NEMA TS 1 controllers. Its flexible and modular design allows for easy replacement of all major components and assemblies

M NEMA TS 1 Cabinets conform to the NEMA standards publication, TS 1 Traffic Control Systems (1999). The cabinets represent a modern and state-of-the-art approach to traffic control while maintaining compatibility with older TS 1 designs. The compact yet robust cabinets have a flexible and modular design that allows for easy replacement of all major components and assemblies.

Download product brochure Request information

Benefits

Operate modern state-of-the-art traffic control functions
Customize cabinet configuration easily
Maximize cabinet applications

Standard Features

8 phase, 4 pedestrian operation
4 emergency preemptions
12-position load bay with one flasher socket
Drop-down technicians panel
Police door with signal “On/Off ” and “Auto/Flash” switches
Technicians panel with signal “On/Off,” “Auto/Flash,” “Stop Time,” and controller “On/Off” switches
4 flash transfer relay sockets
Duplex GFI electrical receptacle
All terminals are barrier type
Subassemblies permanently labeled

Technical Details

Dimensions	30” W x 18” D x 50” H
Material	5052-H32 aluminum, 0.125” thick
Finish	Natural, anodized, or powder coated with optional anti-graffiti coating
Door(s)	Front (1), full size
Handles	3/4” round, stainless steel, with padlock feature
Mounting	Base mounted
Weight	155 lbs without plug-ins or controller

Assemblies

Shelf mount or rack mount Detector Rack
12-position load bay
12-position MMU
Shelves (2)

Options & Add-ons

Lamp(s) available in fluorescent, incandescent, or LED
3/4” x 16” anchor bolts for mounting (4)

Manufacturer

Made by SWARCO McCain.

SWARCO McCain, Inc. reserves the right to change product specifications without notice. For the most up-to-date information, please contact SWARCO McCain.
