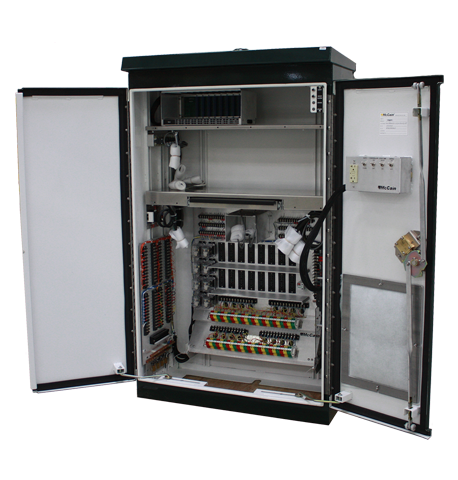

MSF60 NEMA Cabinet

Unique side-by-side front door traffic control cabinet for NEMA TS 2 Type 1 controllers. Ideal for regions with heavily traveled or narrow walkways, offering easy access to all interior components.

MSF60 NEMA Cabinets feature a unique modular, side-by-side front-door design with a reduced door swing, ideal for regions with heavily traveled or narrow walkways while still offering easy access to all interior components. This robust traffic control cabinet is manufactured in accordance with the high-quality standards and features found in all SWARCO McCain traffic cabinets.

Download product brochure Request information

Benefits

Minimize obstruction to pedestrian walkways
Access interior with ease
Operate modern state-of-the-art traffic control functions

Standard Features

8 phase, 4 pedestrian operation, 4 overlaps
Police door with toggle switches (3)
Fluorescent lamp (1)
Duplex-outlet AC receptacle (2)
Unistrut rails
Fan assembly (1)
Copper ground buses for AC
Duplex GFCI receptacles (1)
All terminal blocks are barrier type
Subassemblies permanently labeled
Pull-out drawer/shelf (1)
Shelves (2)

Technical Details

Dimensions	61” H x 36” W x 18.5” D
Material	5052-H32 aluminum, 0.125” thick
Finish	Natural, anodized, or powder coated with optional anti-graffiti coating
Door(s)	Front (2)
Handles	3/4” round, stainless steel, with padlock feature
Mounting	Base mounted

Assemblies

Detector rack - 16 detector channels and 4 preemption channels
Detector panel - 16 channels
Preemption panel - 4 channels
Service power panel
Drop-down technician’s panel
Load bay, drop-down, 16-position, flash transfer relay sockets (8), BIU slots (2)

Options & Add-ons

Anchor bolts for mounting

Manufacturer

Made by SWARCO McCain.

SWARCO McCain, Inc. reserves the right to change product specifications without notice. For the most up-to-date information, please contact SWARCO McCain.
