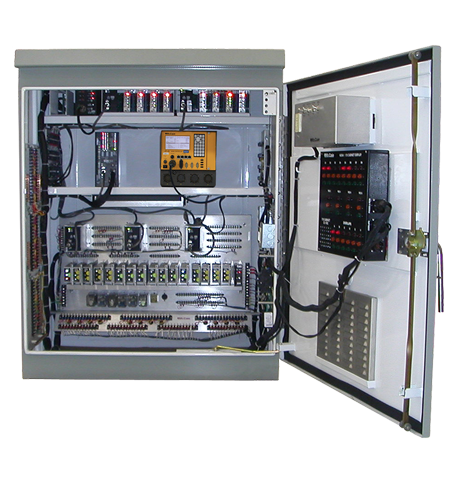

P44 NEMA Cabinet

Standard-size traffic control cabinet for NEMA controllers. TS 1 and TS 2 versions available, designed to ensure efficiency, offering a drop-down technician's panel, police door, and load bay

P44 NEMA Cabinets conform to NEMA Standards Publication TS 2-2003, a modern and state-of-the-art approach to traffic control. Built in adherence with the highest manufacturing standards, the P44 NEMA Cabinet is available in both TS 1 and TS 2 versions. The Cabinet features a drop-down technicians panel, police door, and load bay. Plus, the modular design allows for replacement of major components.

Download product brochure Request information

Benefits

Configure detector racks to any specification
Access interior with ease
Operate modern state-of-the-art traffic control functions

Standard Features

8 phase, 4 pedestrian operation (4 overlaps)
Drop-down technicians panel
Police door
All terminals are barrier type
Subassemblies permanently labeled
Drop down load bay

Technical Details

Dimensions	44” W x 26” D x 55” H
Material	5052-H32 aluminum, 0.125” thick
Finish	Natural, anodized, or powder coated with optional anti-graffiti coating
Door(s)	Front (1), full size
Handles	3/4” round, stainless steel, with padlock feature
Mounting	Base mounted
Weight	285 lbs without plug-ins or controller

Assemblies

Detector Racks (TS 1), 2-channel, 6, 8, 10, or 12-positions
Detector Racks (TS 2), 2-channel, 6, 8, 10, or 12-positions, BIU slots (1 each)
Load Bay 14-position (TS 1) or 16-position (TS 2), BIU slots (2 or 3)
Shelves (2)

Options & Add-ons

Detector power supply fail-safe
Lamp(s), available in incandescent, fluorescent, or LED
Drawer
Various surge protection devices available
Manual control enabled switch
Manual advance switch
Anchor bolts for mounting

Manufacturer

Made by SWARCO McCain.

SWARCO McCain, Inc. reserves the right to change product specifications without notice. For the most up-to-date information, please contact SWARCO McCain.
