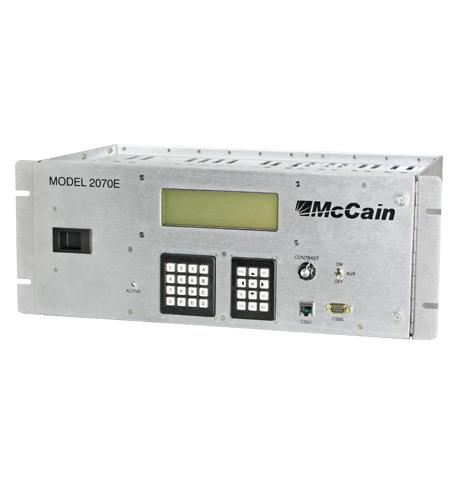

2070E Controller

Manage multiple applications on this OS-9 real-time operating system. Meets Caltrans TEES 2009 and is interchangeable with standard 170 controllers.

2070E Controllers are a rugged, multi-tasking field processor and communications system configurable for a variety of traffic management applications. Interchangeable with standard 170 controllers, 2070E Controllers allow users to upgrade existing intersections to a higher-performance platform without replacing cabinet hardware. 2070E Controllers are designed in full compliance with 2009 Caltrans Transportation Electrical Equipment Specifications.

Download product brochure Request information

Benefits

Support a variety of applications through modular design
Enhance cabinet capabilities without replacing hardware
Ensure compatibility with off-the-shelf products and intersection control software

Standard Features

Operating System

Microware OS-9 real-time operating system (RTOS)

Modules (standard, included)

2070-1E CPU Module
2070-2E Field I/O Module
2070-3B LCD/Front Panel Module
2070-4A Power Supply

Microprocessors

CPU Module: Freescale MC68EN360, 32 Bit, 24.576 MHz microprocessor
I/O Module: Freescale microprocessor, running at 24 MHz

Memory

8MB Flash memory
32MB PSRAM
2MB non-volatile SRAM

Applicable Standards

Caltrans TEES 2009

Extras

Backup real-time clock (RTC)

Technical Details

Dimensions	19” W x 7” H x 12” D
Form Factor	EIA rack mount compatible
Power	95 VAC to 135 VAC, 60 Hz (± 3 Hz)
Environment	Operating Temperature: -37° C to +74° C Humidity: 0 to 95% (non-condensing)
Weight	12 lbs (± based on final module selection)

Controller Interfaces

Communication Interfaces

SDLC ports (2)
ACIA ports (5)
10/100 Mb Ethernet (4), 4 LEDs
Datakey removable storage device, 8Mbits, (blue color)

Front Panel Interface

8 line x 40 character display
3 x 4 navigation keyboard
4 x 4 data entry keypad
C50J connector

Cabinet Interfaces

C1S, C11S, and C12S rear connectors

Options & Add-ons

McCain Controller Software

Available Modules

2070-2B field I/O module for ITS (SP5) / NEMA (SP3) cabinet applications
2070-3A large 4 x 40 character display
2070-4A-220 international voltage: 190 VAC to 253 VAC, 50 Hz (± 3 Hz)
2070-6A dual 1200 baud modem
2070-6B dual 9600 baud modem
2070-7A async comm module
2070-7B sync comm module
2070-8 NEMA adapter

Manufacturer

Made by SWARCO McCain.

SWARCO McCain, Inc. reserves the right to change product specifications without notice. For the most up-to-date information, please contact SWARCO McCain.

SWARCO McCain 2070E Controller.pdf
