2070LX Controller

Manage multiple applications on this Linux operating system. This latest Caltrans-approved controller allows users to upgrade to modern platform without replacing cabinet hardware.

The 2070LX Controller is a ruggedized, multi-tasking field processor and communications system configurable for diverse traffic management applications. Fully ATC compliant and meeting both Caltrans and ATC standards, it ensures interoperability, scalability, and future-proof performance while allowing users to upgrade existing intersections to a higher-performance platform without replacing cabinet hardware, delivering cost efficiency, operational flexibility, and reliable, standards-based support for next-generation intelligent transportation systems.

Download product brochure Request information

Benefits

Support a variety of applications through modular design
Upgrade to a more modern platform without replacing hardware
Ensure compatibility with off-the-shelf products and intersection control software

Standard Features

Operating System

Linux

Modules (standard, included)

2070-1C
2070-2E+
2070-4A

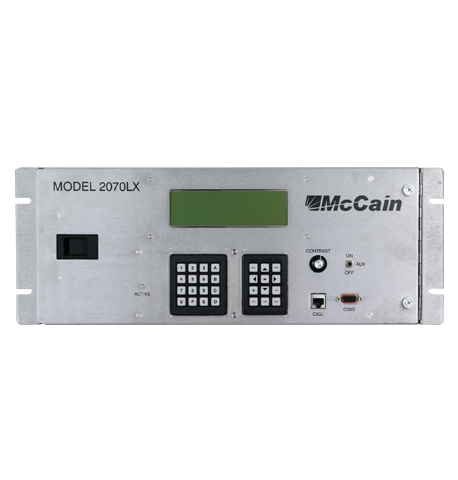

2070-LX Front Panel

Microprocessors

MPC8360E Freescale PowerQUICC II Pro

Memory

256MB DRAM
16MB Flash Memory NOR
256MB Flash Memory NAND
2MB Non-Volatile SRAM
SD card slot

Applicable Standards

Caltrans TEES 2009

Extras

Backup real-time clock (RTC)
Maxim DS1390

Technical Details

Dimensions	19” W x 7” H x 13” D
Form Factor	19” EIA rack mount compatible
Power	89 VAC to 135 VAC, 60 Hz (± 3 Hz)
Environment	Operating Temperature: -37° C to +74° C Humidity: 0 to 95% (non-condensing)
Weight	12 lbs (± based on final module selection)

Controller Interfaces

Communication Interfaces

SDLC ports (up to 5)
Asynchronous (up to 7)
ENET 1: 100 Base – T Ethernet switch, 1 uplink and 3 additional ports
ENET 2: 100 Base – T Ethernet port dedicated for local communications
USB port

Front Panel Interface

8 lines x 40 characters display
3 x 4 navigation keyboard
4 x 4 data entry keypad

Cabinet Interfaces

C1S, C11S, and C12S rear connectors

Options & Add-ons

McCain Controller Software

Omni eX® Intersection Control Software

Available Modules

2070-2B field I/O module for ITS (SP5) / NEMA (SP3) cabinet applications
2070-4A-220 international voltage: 190VAC to 253VAC, 50 Hz (± 3 Hz)
2070-6A dual 1200 baud modem
2070-6B dual 9600 baud modem
2070-7A async comm module

Engine Board

Engine Board 4

Lineux Kernel: 5.10.105
Processor: MPC8360 Rev 2.1 at 400 MHz
Main Memory: 256 MB, 64 bits, 533.333 MHz
Nor Flash Memory: 512 MB
SRAM Memory: 2 MB
Ethernet ports: 2 ports 10/100 Mb/s
USB ports: 1 port USB 1.1

Manufacturer

Engine Board 4

Lineux Kernel: 5.10.105
Processor: MPC8360 Rev 2.1 at 400 MHz
Main Memory: 256 MB, 64 bits, 533.333 MHz
Nor Flash Memory: 512 MB
SRAM Memory: 2 MB
Ethernet ports: 2 ports 10/100 Mb/s
USB ports: 1 port USB 1.1

SWARCO McCain 2070 LX Controller.pdf
