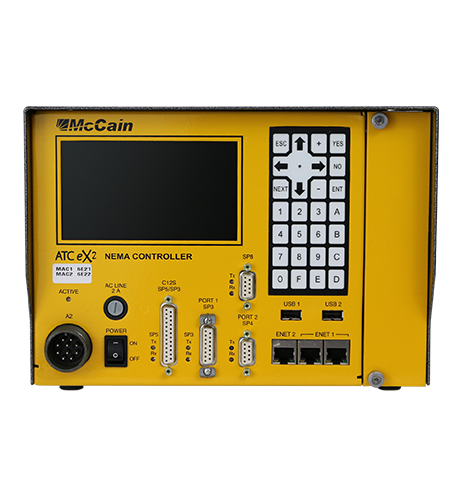

ATC eX2 NEMA Controller

Get superior control with this ATC 5.2b compliant, multi-application NEMA TS 1/TS 2 controller. This advanced and flexible controller is ideal for traffic management and intelligent transportation systems.

ATC eX2 NEMA Controllers are advanced, multi-application controllers that simultaneously supports multiple software applications through a single platform. Designed from the ground-up, the controllers provide revolutionary flexibility and control. Best of all, the single ATC eX compliant housing can be configured for either TS 2 Type 1 or TS 2 Type 2 applications and is backward compatible with TS 1.

Download product brochure Request information

Benefits

Compliant with NEMA and ATC 5.2b standards
Control complicated intersections
Minimize hardware requirements at intersections with multi-tasking ability
Operate McCain or third-party NTCIP software
Connect to any environment through a wide variety of communication options
Configure for NEMA TS 1, TS 2 Type 1, or TS 2 Type 2 applications
Store data with generous memory configurations

Standard Features

Operating System

Linux

Modules (standard, included)

None

Microprocessors

Freescale PowerQUICC II Pro

Memory

256MB Flash memory
256MB DRAM
2MB non-volatile SRAM

Applicable Standards

NEMA TS 2-2003 v2.06
ATC 5.2b
NTCIP 1201,1202 and applicable base standards

Extras

Backup Real-Time Clock (RTC)

Technical Details

Dimensions	TS 2 Type 1: 7” H x 10” W x 10.5” D TS 2 Type 2: 10” H x 10” W x 10.5” D
Form Factor	Shelf mount configuration
Power	89 VAC to 135 VAC, 60 Hz (± 3 Hz)
Environment	Operating Temperature: -37° C to +74° C Humidity: 0 to 95% (non-condensing)
Weight	TS 2 Type 1: 7 lbs (± based on final module selection) TS 2 Type 2: 10 lbs (± based on final module selection)

Controller Interfaces

Communication Interfaces

SDLC ports (2)
Serial (asynchronous) on front panel (3)
Serial (asynchronous) on 2070 compatible modem slot (2)
ENET 1: 100 Base-T Ethernet switch, 1 uplink, and 1 additional port
ENET 2: 100 Base-T Ethernet port dedicated for local communications
USB ports (2)

Front Panel Interface

16 line x 40 character display
7 x 4 keypad (28 key)

Cabinet Interfaces

NEMA TS 2 Type 1 Port 1 (SDLC)
NEMA TS 2 Type 1 A connector
NEMA TS 2 Type 2 A, B, C and D connectors

Options & Add-ons

McCain Controller Software

Omni eX® Intersection Control Software

Available Modules

Various communication modules (2070 form factor)
GPS module

Other

Custom D connectors
International Input Voltage: 190VAC to 253VAC, 50 Hz (± 3 Hz)
Available in TS 2 Type 1 and TS 2 Type 2 configurations

Engine Board

Engine Board 4

Lineux Kernel: 5.10.105
Processor: MPC8360 Rev 2.1 at 400 MHz
Main Memory: 256 MB, 64 bits, 533.333 MHz
Nor Flash Memory: 512 MB
SRAM Memory: 2 MB
Ethernet ports: 2 ports 10/100 Mb/s
USB ports: 1 port USB 1.1

Manufacturer

Made by SWARCO McCain.

SWARCO McCain, Inc. reserves the right to change product specifications without notice. For the most up-to-date information, please contact SWARCO McCain.

SWARCO McCain ATC eX2 NEMA Controller.pdf
