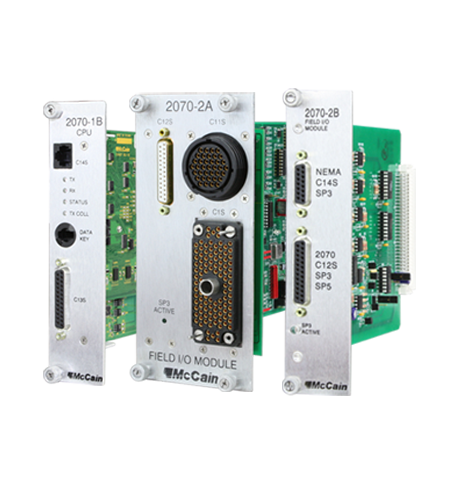

2070 Controller Modules

Expand the performance and versatility of McCain 2070 controllers, supporting applications like ramp metering, variable message signs, and lane control.

2070 Controller Modules expand the performance and versatility of McCain 2070 Controllers. Through various combinations of the Caltrans TEES-compliant 2070 modules and controller software, users can configure 2070 Controllers to support a variety of applications beyond just intersection control, such as ramp metering, variable message signs, and lane control.

Download product brochure Request information

Benefits

Upgrade or repair 2070 controllers
Install quickly and easily in the field
Endure harsh environments
Utilize with any McCain 2070 Controller

CPU Modules

2070-1C

TEES 2009 compliant
Linux operating system
256 MB DDR Ram
16 MB NOR Flash memory
256 MB NAND Flash memory
2 MB non-volatile SRAM
SDLC ports (up to 5)
ACIA ports (up to 7)
3 10/100 MBPS Ethernet port
1 USB port

IO Modules

2070-2A

Field I/O for Caltrans 170/2070 cabinets
TEES 2002 compliant

2070-2B

Field I/O for NEMA TS 1 or TS 2 Type 2 cabinets (with 2070-8)
Field I/O for ITS cabinets

2070-2E

Field I/O for Caltrans 170/2070 cabinets
TEES 2009 compliant

2070-2N

Field I/O for NEMA TS 2 Type 1 cabinets

GPS Modules

2070-7G

Plug-in module for 2070 controllers

Stand Alone

Stand-alone module for general purpose and NEMA controllers

Front Panel Displays

2070-3A

Large font LCD panel module
4 lines x 40 characters
3 x 4 navigation keypad
4 x 4 data entry pad

2070-3B

Small font LCD panel module
8 lines x 40 characters
3 x 4 navigation keypad
4 x 4 data entry pad

Power Supply

2070-4A

10 A power supply module

2070-4B

3.5 A power supply module

Communication Modules

2070-6A

Dual 1200 baud modem (GDI)

2070-6B

Dual 9600 baud modem (GDI)

2070-7A

Dual RS232 serial ports

2070-7B

Dual RS485 serial ports

NEMA Adapter

2070-8

NEMA adapter (with 2070-2B)

Chassis

2070 chassis with serial motherboard

Cover plates

2070 card slot cover, 1x wide
2070 card slot cover, 2x wide

Manufacturer

Made by SWARCO McCain.

SWARCO McCain, Inc. reserves the right to change product specifications without notice. For the most up-to-date information, please contact SWARCO McCain.
