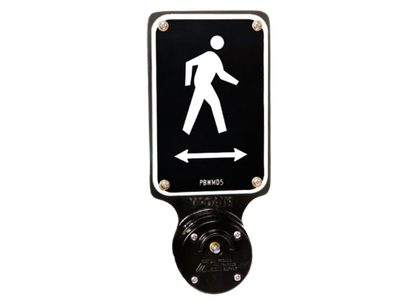

Pedestrian Pushbuttons

Use with pedestrian signals to promote intersection safety. These ADA-compliant, durable stainless steel pushbuttons can be operated with minimal force.

Pedestrian Pushbuttons are designed for use in conjunction with pedestrian signals to promote intersection safety. Encouraging freedom of mobility, Pedestrian Pushbuttons can be operated with minimal force, in compliance with the Americans with Disabilities Act. Pedestrian Pushbuttons feature a stainless steel design and are compatible with a wide variety of Pedestrian Pushbutton Plates.

Download product brochure Request information

Benefits

Control pedestrian movement at signalized intersection
Promote pedestrian safety
Accommodate a range of post sizes

Standard Features

Activating force of less than 3.5 lbs
Dustproof, water-resistant switch
Adjustable pole mounting brackets
Meets or exceeds ADA guidelines

Technical Details

Housing Dimensions	5” x 7” Pushbutton: 5.1” W x 11.0” H x 2.7” D 9” x 12” Pushbutton: 9.0” W x 16.8” H x 2.7” D
Button Diameter	2”
Housing Material	Cast aluminum
Button Material	Stainless steel
Finish(es)	Powder coated
Color(s)	Federal yellow, signal green, black, or custom colors
Mounting	Adjustable pole mount
Weight	5” x 7” Pushbutton: 2.7 lbs 9” x 12” Pushbutton: 8.3 lbs

Options & Add-ons

Wide variety of cover plates
2” ADA pushbutton available separately to retrofit existing installations

SWARCO McCain Pedestrian Pushbuttons.pdf
