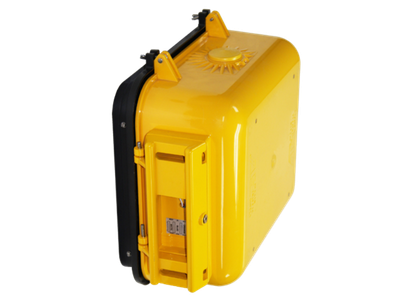

Clamshell Mount

Secure 16-inch pedestrian housings to pole mounts with ease. Accommodates various requirements with multiple mounting options.

Clamshell Mounts are a quick and convenient way to mount 16-inch pedestrian signals. Installed half on the pole and half on the housing, the dual-mount unit easily slides together, creating a singular, secure mount. When the pedestrian housing requires maintenance or needs to be replaced, the mount easily separates, allowing the housing to be quickly taken down and remounted in the field.

Download product brochure Request information

Benefits

Secure pedestrian housings confidently
Install quickly and easily
Complement McCain pedestrian signals

Standard Features

2-part mounting assembly
Symmetrical mounting holes for left or right mounting
Weathertight neoprene gasket
3-position, 2-row terminal block mounted in the upper half of the signal mounted portion; one side with fast-on terminals, the other side with screw terminals
28” wire leads (3) provided to wire clamshell terminal block to pedestrian signal terminal block
Field wiring is terminated on clamshell terminal block
Flathead 3/16” hex socket closure bolt

Technical Details

Dimensions	11.1” H x 5.1” W x 2.4” D
Material	Cast aluminum alloy
Finish(es)	Powder coated
Color(s)	Federal yellow, signal green, black, or custom colors
Latching System	Flathead 3/16” hex socket bolt
Mounting	Band, through-bolt, or lag screw
Weight	4.5 lbs

Options & Add-ons

Conduit entrance for mounting to wood pole
Pre-drilled pedestrian housings

Manufacturer

Made by SWARCO McCain.

SWARCO McCain, Inc. reserves the right to change product specifications without notice. For the most up-to-date information, please contact SWARCO McCain.

SWARCO McCain Clamshell Mount.pdf
