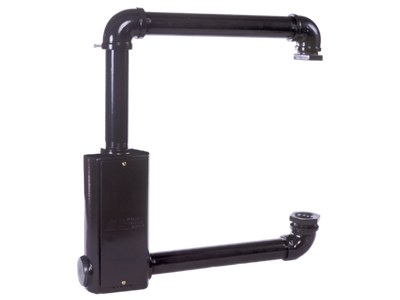

Signal Framework

Everything you need to mount your traffic and pedestrian signals. Built to high standards, ensuring a rugged and dependable product.

Signal Framework provides durable mounting options for traffic and pedestrian signals. SWARCO McCain's Signal Framework collection covers the gamut of mounting needs including, side-of-pole and post top mountings, overhead mounting, mast arm mounts, post top and side-of-pole pedestrian framework, pipe fittings, hardware, and special/custom mounting options.

Download product brochure Request information

Benefits

Everything you need to complete your signal installation
Durable, long-lasting construction
Custom and standard mounting options available
Complement McCain signals and pedestrian housings

Standard Features

1½-11½ NPT
14 AWG THHN stranded wire
Powder coated in standard or custom colors
Meets industry standards

Technical Details

Dimensions	Varies based on framework
Wall Thickness	Schedule 40
Material	Aluminum, bronze, or steel
Finish(es)	Powder coated
Color(s)	Federal yellow, signal green, black, or custom colors
Mounting	Side of pole, top of pole, mast arm
Environment	Operating Temperature: -37° C to +74° C Humidity: 0 to 95% (non-condensing)
Weight	Varies based on selected framework

Options & Add-ons

Clamshell mount for pedestrian housings
Various configurations and parts to meet DOT specifications

Manufacturer

Made by SWARCO McCain.

SWARCO McCain, Inc. reserves the right to change product specifications without notice. For the most up-to-date information, please contact SWARCO McCain.

SWARCO McCain Signal Framework.pdf
