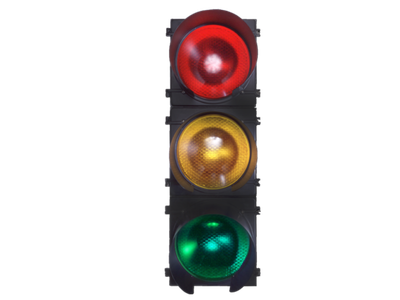

Traffic Signal Housings

• Increase product durability in extreme or high-wind conditions
• Customize final signal configuration with modular design
• Corrosion resistant and low maintenance
• Compatible with McCain signal accessories

• Modular sections, one-piece, injection molded or cast
• 72-tooth serrated boss and reinforcing ribs, top and bottom
• Brass threaded inserts for visor attachment (4)
• Housings have a cast boss for mounting a 5 or 6-position terminal block; one side of terminal block with fast-on terminals, the other side with screw terminals
• Words red, amber, and green are cast next to each boss to identify light source lead wires
• 5 or 6-position terminal block installed in center section (1) (alternate mounting is available)
• Stainless steel door roll pins and eye bolt/wing nut assemblies
• Integral lugs on the housing and doors with stainless steel roll pins provide effective door hinges
• Weathertight E.P.D.M. rubber door gasket
• Aluminum and polycarbonate, 8” and 12” housings can be mixed in one signal head

Terminal Blocks

• Location
• Quantity
• Type

Accessories

• Signal Visors
• Backplates

Mounting

• Various framework, orientation, and configurations
• Door mounting hardware: Push pin (removable) or roll pin (permanent)

Other

• LED or incandescent light source
• Fiberglass-free polycarbonate
• High-performance (highly directional) signal version
• Traffic Signal Visor Heater

Made by SWARCO McCain.

SWARCO McCain, Inc. reserves the right to change product specifications without notice. For the most up-to-date information, please contact SWARCO McCain.
