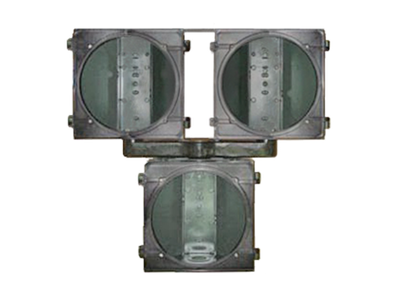

HAWK Traffic Signals

Alert drivers to pedestrian presence at mid-block crossings. Enhance pedestrian safety with high-visibility signals designed to control traffic flow effectively.

HAWK (High-Intensity Activated CrossWalK Beacon) Traffic Signals quickly alert drivers to the presence of pedestrians at mid-block crossings by demonstrating a flashing-amber to stationary-red sequence. The HAWK Signal only stops traffic as needed, allowing for longer periods of uninterrupted traffic flow on busy streets.

Download product brochure Request information

Benefits

Increases pedestrian safety
Creates safer mid-block pedestrian crossings without the need for a traditional intersection
Fabricated from aluminum or polycarbonate with 10% fiberglass reinforcement (available without fiberglass reinforcement)
Provides protection from elements with weathertight doors

Standard Features

One-piece, injection molded or cast
72-tooth serrated boss and reinforcing ribs, top and bottom
Brass threaded inserts for visor attachment (4)
Housings have a cast boss for mounting a 5 or 6-position terminal block; one side of terminal block with fast-on terminals, the other side with screw terminals
Words red, amber, and green are cast next to each boss to identify light source lead wires
5 or 6-position terminal block installed in center section (1) (alternate mounting is available)
Stainless steel door roll pins and eye bolt/wing nut assemblies
Integral lugs on the housing and doors with stainless steel roll pins provide effective door hinges
Weathertight E.P.D.M. rubber door gasket
Aluminum and polycarbonate housings can be mixed in one signal head

Technical Details

Dimensions	28.9” H x 31.3” W x 7.0” D
Material	Aluminum or 10% fiberglass reinforced polycarbonate
Finish(es)	Aluminum: Powder coated Polycarbonate: Colored resins integral to housing
Color(s)	Federal yellow, signal green, black, or custom colors
Mounting	2.0” hole top and bottom fits 1.5” NPT fittings
Environment	Operating Temperature: -37° C to +74° C Humidity: 0 to 95% (non-condensing)
Weight	Polycarbonate: 13 lbs Aluminum: 23 lbs

Options & Add-ons

Fiberglass-free polycarbonate
Location, quantity, and type of terminal blocks
Push pin (removable) or roll pin (permanent) door mounting hardware
Signal Visors
Backplates
Various mounting framework including plumbizer
Door mounting hardware: Push pin (removable) or roll pin (permanent)
LED or incandescent light source
Traffic Signal Visor Heater

SWARCO McCain HAWK Trsffic Signal.pdf
