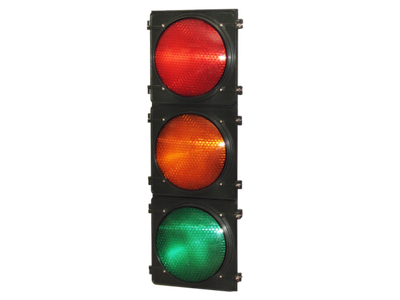

Heavy-Duty Traffic Signal Assembly

• Increase product durability in extreme or high-wind conditions
• Customize final signal housing color, configuration, and terminal block locations
• Corrosion resistant and low maintenance
• Compatible with McCain signal accessories

Signal Assembly

• Modular sections, one-piece, injection molded
• 72-tooth serrated boss and reinforcing ribs, top and bottom
• Brass threaded inserts for visor attachment (4)
• Housings have a cast boss for mounting a 5 or 6-position terminal block; one side of terminal block with fast-on terminals, the other side with screw terminals
• Words red, amber, and green are cast next to each boss to identify light source lead wires
• 5 or 6-position terminal block installed in center section (1) (alternate mounting is available)
• Stainless steel door roll pins and eye bolt/wing nut assemblies
• Integral lugs on the housing and doors with stainless steel roll pins provide effective door hinges
• Weather-tight E.P.D.M. rubber door gasket

Reinforcement Kit

• Stainless steel backplate reinforcement bars (2)
• Extra thick stainless steel washers for backplate
• Stainless steel screws and nuts
• Reinforcement plates for top and bottom of signal head
• Stainless steel washers installed between each section

Terminal Blocks

• Location
• Quantity
• Type

Accessories

• Signal Visors
• Backplates

Mounting

• Various framework, orientation, and configurations

Other

• LED or incandescent light source
• Fiberglass-free polycarbonate
• Traffic Signal Visor Heater

Made by SWARCO McCain.

SWARCO McCain, Inc. reserves the right to change product specifications without notice. For the most up-to-date information, please contact SWARCO McCain.
