M ATC Cabinet - Rack Mount

NEMA ATC Cabinet with traditional "M" footprint. 2 doors each, front and back.

The M ATC Rack Mount Cabinet is part of SWARCO McCain’s revolutionary ATC cabinet series and is built to comply with the latest ATC Standard 5301 V02, making it one of the safest and most efficient cabinets on the market today. The traditional “M” footprint features side-by-side front and back-door design with reduced door swing, ideal for congested or narrow walkways. Through best-in-class diagnostics, smart components, and cutting-edge technology, SWARCO McCain’s ATC Cabinets are the safest available today.

Download product brochure Request information

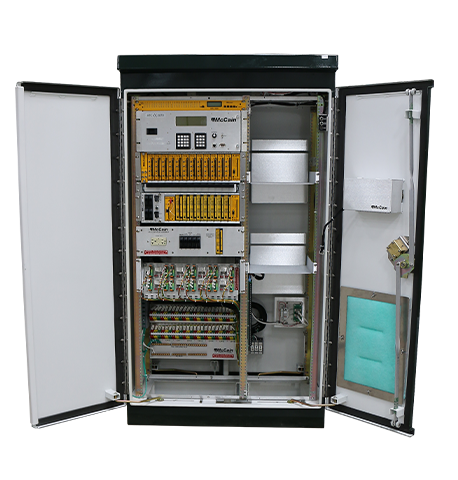

SWARCO McCain M ATC Cabinet - Rack Mount

Benefits

Safeguards against accidental shock from inadvertent contact with high voltages
Detects a dark approach for increased driver safety
Monitors FTR and flasher continuously to ensure operability
Promotes easy access with side-by-side front and back door designs
Reduced door swing ideal for heavily trafficked walkways
Connected vehicle ready

Standard Features

Field output termination assembly provides removable contact blocks for easy connections to field signal wires, sockets for flash transfer relays (FTRs), and flash program blocks (FPBs) for output channels
All channels are flashable and programmable
FPBs control and select the color (red, yellow, or dark) during flash
Hermetically sealed high-density FTR features an LED indicator to visually confirm relay is operational and contacts have transferred
Interior LED cabinet light
Model 2202 dual flasher/switch pack combination
Exterior is continuously welded

Technical Details

Dimensions	65” H x 36” W x 27” D
Material	5052-H32 aluminum, 0.125” thick
Finishes	Natural, powder coat (standard, anti-graffiti, and custom colors)
Access	Front door (2), Rear door (2)
Latching System	3-point, choice of Corbin or Best locks
Handles	3/4” round, stainless steel with padlock hasp
Door Stops	90° and 180° (±10°), bottom
Ventilation	Thermostatically controlled 100 CFM fan Louvered air intake in door, Ring Panel air filter
Mounting	Base mounted

Assemblies

24 or 48-channel input assembly
2 or 4-channel industry standard detection modules
4 channel detector, PPB, EVP, etc.
16-channel output assembly
32-channel CMU
CMU auxiliary display unit
Model 2216-24 cabinet power supply
DC power/communication assembly
Garmin GPS communication panel
Police panel with On/Off, MCE, Auto/Flash. and Interval Advance push-button cable
Slide-out drawer for storing programming blocks, plans etc.

Options & Add-ons

3/4” x 16” anchor bolts for mounting (4)
Garmin GPS Communication Panel
ATC Cabinet Input Test Panel
Cabinet Test Display
Input File Test Card
ATC CyberCabinet
ATC Cabinet Alarm Panel

Manufacturer

Made by SWARCO McCain.

SWARCO McCain, Inc. reserves the right to change product specifications without notice. For the most up-to-date information, please contact SWARCO McCain.
