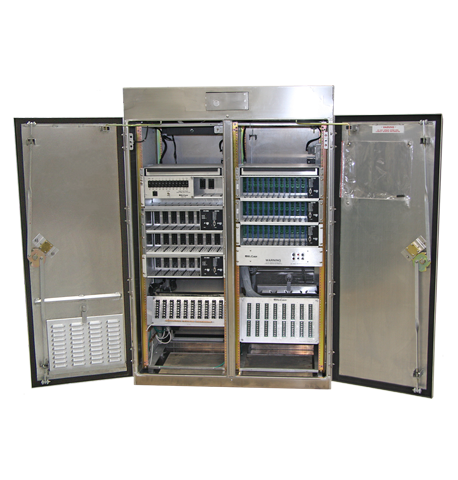

340 ITS Cabinet

Oversized, four-door ITS cabinet for 2070 controllers. Provides ample space and convenient modularity for numerous applications.

340 ITS Cabinets are robust and intelligent cabinets designed to provide state-of-the-art transportation control. The largest of the ITS cabinets, the 340 ITS Cabinet provides ample space and convenient modularity for numerous applications. In addition to traffic control, the cabinet’s advanced design is applicable to many other control requirements, including sign control and ramp meters.

Download product brochure Request information

Benefits

House assemblies conveniently and safely
Interchange assemblies easily between manufacturers
Ideal for all ITS applications including traffic control
Comply with ITS cabinet standard

Standard Features

Standard 218 SIU’s for input and output serial control
Modular power, DC, and serial buses
Fluorescent cabinet lights (2)

Technical Details

Dimensions	67” H x 45” W x 26” D
Material	5052-H32 aluminum, 0.125” thick
Finish	Natural, anodized, or powder coated with optional anti-graffiti coating
Door(s)	Front (2), back (2), all full size
Handles	3/4” round, stainless steel, with padlock feature
Mounting	Base mounted
Weight	450 lbs without plug-ins or controller

Assemblies

12-position input file
14-pack and 6-pack output file
Field output and input panels (2 each)
Raw/clean AC power
AC clean module
24 VDC power supply
DC power / communications (2) and extension (2)
Power distribution assembly (PDA)
Dual-circuit flasher positions (2)
Service panel, AC and EG buses
Police panel with signal “On/Off”, “Auto/Flash” and “Auto/Manual” switches
Fiber optic termination panel
Drawers (2)
Manual advance push button cable

Options & Add-ons

Anchor bolts for mounting

Manufacturer

Made by SWARCO McCain.

SWARCO McCain, Inc. reserves the right to change product specifications without notice. For the most up-to-date information, please contact SWARCO McCain.
