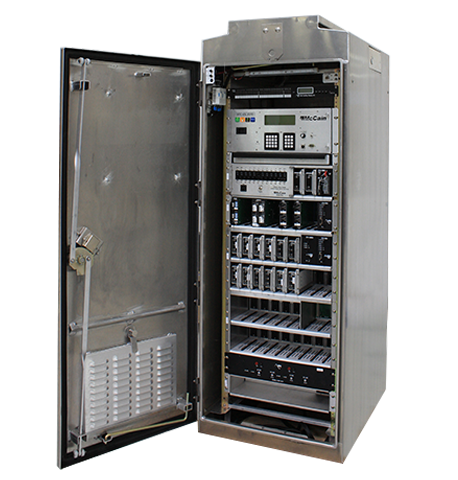

342 ITS Cabinet

Standard-size ITS cabinet for 2070 controllers, providing convenient modularity for a flexible control system.

342 ITS Cabinets are the second-largest cabinets in the ITS family. Patterned after the industry standard 332 cabinet, the 342 ITS Cabinet provides convenient modularity for a flexible control system. In addition to traffic control, the cabinet’s intelligent design is applicable to many other control requirements, including sign control and ramp meters.

Download product brochure Request information

Benefits

Operate modern state-of-the-art traffic signal control functions
Interchange assemblies easily between manufacturers
Ideal for all ITS applications including traffic control
Comply with ITS cabinet standard

Standard Features

Standard 218 SIU’s for input and output serial control
Modular power, DC, and serial buses
Fluorescent cabinet lights (2), front and back

Technical Details

Dimensions	67” H x 24” W x 30” D
Material	5052-H32 aluminum, 0.125” thick
Finish	Natural, anodized, or powder coated with optional anti-graffiti coating
Door(s)	Front (1), back (1), all full size
Handles	3/4” round, stainless steel, with padlock feature
Mounting	Base mounted
Weight	283 lbs without plug-ins or controller

Assemblies

12-position input file
14-pack output file
Raw/clean AC power, 2 socket
24 VDC power supply, rack mount
DC power / communication
Power distribution assembly (PDA)
Dual-circuit flasher positions (2)
Service panel, AC and EG buses
Police panel with signal “On/Off”, “Auto/Flash” and “Auto/Manual” switches
Fiber optic termination panel
Drawer
Manual advance push button cable

Options & Add-ons

Anchor bolts for mounting

Manufacturer

Made by SWARCO McCain.

SWARCO McCain, Inc. reserves the right to change product specifications without notice. For the most up-to-date information, please contact SWARCO McCain.
