M NEMA TS 2 Cabinet

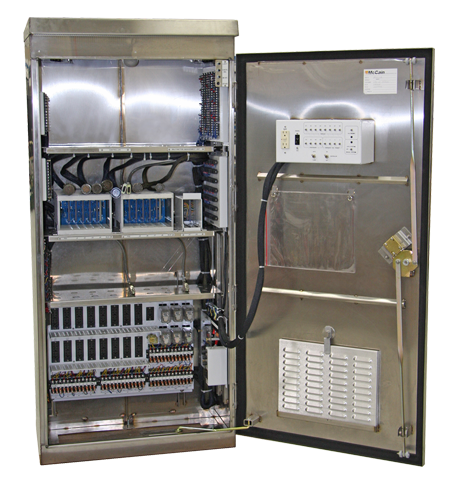

Standard-size traffic control cabinet for NEMA TS 2 Type 2 controllers, available in a 'stretched' version that offers an additional 18 inches of height above the standard.

M NEMA TS 2 Cabinets meet all the functional requirements of the NEMA TS 2, v 02.06, size five cabinet specification, affording all the flexibility and advanced features of the NEMA TS 2 design. In addition, the traffic control cabinet supports the Type 2 interface requirements. The M NEMA TS 2 Cabinet is available in a 'stretched' version, offering an additional 18 inches of height to accommodate various cabinet sizes and style requirements.

Download product brochure Request information

Benefits

Operate modern state-of-the-art traffic control functions
Maximize cabinet applications
Available in standard and stretch models

Standard Features

8 phase, 4 pedestrian operation (4 overlaps)
Drop-down technicians panel
Police door with signal “On/Off ” and “Auto/Flash” switches
Special function panel (“D” connector)
Easy access to cabinet fuses
All terminals are barrier type
Subassemblies are permanently labeled

Technical Details

Dimensions	Standard: 49” H x 30” W x 17” D Stretch: 68” H x 31” W x 19” D
Material	5052-H32 aluminum, 0.125” thick
Finish	Natural, anodized, or powder coated with optional anti-graffiti coating
Door(s)	Front (1), full size
Handles	Standard: 3/4” round, stainless steel, with padlock feature Stretch: Stainless steel, flat bar
Mounting	Base mounted
Weight	Standard: 280 lbs without plug-ins or controller Stretch: 363 lbs without plug-ins or controller

Assemblies

Detector racks (2)
16-position load bay
Emergency preemption rack

Options & Add-ons

Police panel “Auto/Manual” switch
Detector power supply fail-safe
Stainless steel version (stretch only)
Anchor bolts for mounting

Manufacturer

Made by SWARCO McCain.

SWARCO McCain, Inc. reserves the right to change product specifications without notice. For the most up-to-date information, please contact SWARCO McCain.
